LK-NYDMD DWDM മൈക്രോവേവ് DFB ലേസർ മൊഡ്യൂൾ
- Direct Modulation DFB Laser
- High-Dynamic-Range
- Wavelength: CWCM
- 18 GHz Bandwidth
- Low threshold current
- ഉയർന്ന output ട്ട്പുട്ട് പവർ
- 7pin butterfly package with SMA connector
- Operating case temperature: -40 to 70℃
- മെച്ചപ്പെടുത്തിയ വിശ്വാസ്യത
ഉൽപ്പന്ന വിവരണം
LK-NYDMD laser is superior directly modulated distributed feedback (DFB) laser designed to deliver outstanding performance in linear fiber optic communications for applications that demand extremely broad bandwidths. Serving as a cutting-edge alternative to traditional coaxial cable systems, LK-NYDMD excels at transmitting high-frequency signals of 12 GHz or 18 GHz.
By preserving the integrity of the RF signal in its original form, these lasers significantly enhance the reliability of microwave communication networks. Thanks to these attributes, LK-NYDMD markedly improves signal quality across a diverse range of applications, such as remote antenna control, telemetry, distribution of timing and reference signals, as well as measurement and delay line systems.
LK-NYDMD features an integrated optical isolator, thermoelectric cooler (TEC), thermistor, laser diode chip, and monitor photodiode, all of which are sealed within a robust 7-pin butterfly package to ensure hermetic protection and maintain peak performance.
സാങ്കേതിക സവിശേഷതകൾ
| സമ്പൂർണ്ണ പരമാവധി റേറ്റിംഗുകൾ | ||||
|---|---|---|---|---|
| പാരാമീറ്റർ | ചിഹ്നം | കുറഞ്ഞത്. | മാക്സ്. | ഘടകം |
| Laser diode forward current | If | - | 120 | mA |
| Laser diode reverse voltage | V | - | 1 | V |
| Front power | Pf | - | 20 | dBm |
| PD reverse voltage | V | - | 15 | V |
| Forward current (PD) | Im | - | 2 | mA |
| ഓപ്പറേഷൻ താപനില | To | -40 | + 70 | സി ° |
| സംഭരണ താപനില | Ts | -55 | + 85 | സി ° |
| Storage relative humdity | Sr | - | 85 | % |
| Optical and Electrical Specification (Tc=25°C) | |||||||
|---|---|---|---|---|---|---|---|
| പാരാമീറ്റർ | ചിഹ്നം | ടെസ്റ്റ് അവസ്ഥ | കുറഞ്ഞത് | ടൈപ്പ് ചെയ്യുക | മാക്സ് | യൂണിറ്റുകൾ | കുറിപ്പ് |
| തരംഗദൈർഘ്യം | λ | IF = ഞാൻOP, T = TOP | DWDM (ITU) 1550 - |
nm | |||
| ആവൃത്തി | - | X Option | 0.1 | - | 12 | GHz | - |
| Ku option | 1 | - | 18 | ||||
| ഒപ്റ്റിക്കൽ ഔട്ട്പുട്ട് പവർ | P | IF=Iop | - | 10 | - | mW | 1 |
| Thershold current | Ith | λ=1550nm | - | - | 10 | mA | - |
| Operation current | Iop | λ=1550nm | - | 55 | 100 | mA | - |
| ഓപ്പറേഷൻ വോൾട്ടേജ് | Vop | λ=1550nm | - | 1.5 | 2.5 | V | - |
| Slope efficiency | SE | - | 0.2 | - | - | പ / എ | - |
| Side-mode suppression ratio | SMSR | λ=1550nm ,IF=Iop | 30 | - | - | dB | - |
| Rative Intensity Noise | RIN | - | -150 | -130 | dB / Hz | - | |
| Bandwidth (-3dB,I=60mA) | S21 | X Option | - | 12 | - | GHz | - |
| Ku option | - | 18 | - | ||||
| റിട്ടേൺ നഷ്ടം | VSWR | X Option | - | - | 2 | dB | - |
| Ku option | - | - | 2.2 | ||||
| ഇൻപുട്ട് 1 dB കംപ്രഷൻ | - | 15 | - | - | dBm | - | |
| Thermistor Resistance | Rth | @25°C | - | 10 | - | കോം | - |
| TEC current | It | - | - | - | 1.2 | A | 2 |
| TEC voltage | Vt | - | - | 2.5 | V | 2 | |
| Capacitance (PD) | Ct | - | - | 20 | pF | - | |
| മോണിറ്ററിംഗ് കറൻ്റ് | Im | - | 0.10 | - | 2.0 | mA | - |
| Dark current (PD) | Id | - | - | 50 | nA | - | |
കുറിപ്പുകൾ:All laser chips come from wafers that have been certified using a representative lot of devices that must achieve an acceptable yield for burn-in.
1.Laser temperature set 25℃, bias current at 55mA
2. Operation case temperature -40~70℃
● Typical Data
(λ=1550nm, TC =25 ℃)

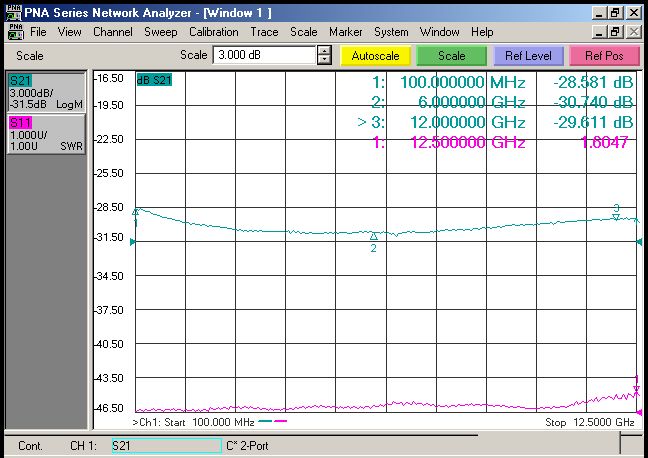

（ Fig. 1 X- Band S11 and S22 data ）
（ Fig. 2 Ku- Band S11 and S22 data ）

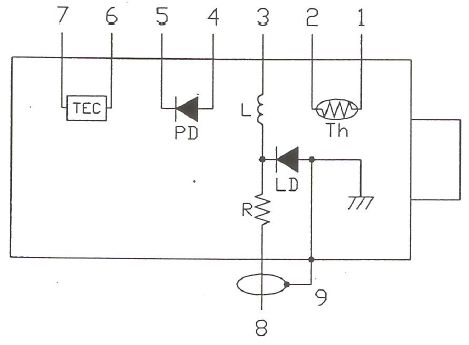

● Electrical schematic
| Lead# | ഫംഗ്ഷൻ |
| 1 | തെർമിസ്റ്റർ |
| 2 | തെർമിസ്റ്റർ |
| 3 | LD-(Bias) |
| 4 | PD+ |
| 5 | PD- |
| 6 | Cooler+ |
| 7 | Cooler- |
| 8 | LD-(RF) |
| 9 | ഗ്രൗണ്ട് |
● Outline drawings(Unit: mm[inch])
RF Connector: SMA
● Ordering Information
Sheet 1：
| കോഡ് | വിവരണം |
| DM | DWDM (Dense Wavelength Division Multiplexing) 7 PIN butterfly package |
Sheet 2：
| കോഡ് | അനലോഗ് ബാൻഡ്വിഡ്ത്ത് |
| X | 0.1 ～ 12 GHz |
| Ku | 1 ～ 18 GHz |
Sheet 3：
| ചാനൽ | ആവൃത്തി (THz) | മധ്യ തരംഗദൈർഘ്യം (nm) | ചാനൽ | ആവൃത്തി (THz) | മധ്യ തരംഗദൈർഘ്യം (nm) | |
| C01 | Any desired custom wavelength | C37 | 193.7 | 1547.72 | ||
| C02 | Non-ITU, 1547 nm – 1560 nm | C38 | 193.8 | 1546.92 | ||
| C03 | Non-ITU, 1557 nm – 1560 nm | C39 | 193.9 | 1546.12 | ||
| C04 | Non-ITU, 1530 nm – 1560 nm | C40 | 194 | 1545.32 | ||
| C15 | 191.5 | 1565.50 | C41 | 194.1 | 1544.53 | |
| C16 | 191.6 | 1564.68 | C42 | 194.2 | 1543.73 | |
| C17 | 191.7 | 1563.86 | C43 | 194.3 | 1542.94 | |
| C18 | 191.8 | 1563.05 | C44 | 194.4 | 1542.14 | |
| C19 | 191.9 | 1562.23 | C45 | 194.5 | 1541.35 | |
| C20 | 192 | 1561.41 | C46 | 194.6 | 1540.56 | |
| C21 | 192.1 | 1560.61 | C47 | 194.7 | 1539.77 | |
| C22 | 192.2 | 1559.79 | C48 | 194.8 | 1538.98 | |
| C23 | 192.3 | 1558.98 | C49 | 194.9 | 1538.19 | |
| C24 | 192.4 | 1558.17 | C50 | 195 | 1537.4 | |
| C25 | 192.5 | 1557.36 | C51 | 195.1 | 1536.61 | |
| C26 | 192.6 | 1556.55 | C52 | 195.2 | 1535.82 | |
| C27 | 192.7 | 1555.75 | C53 | 195.3 | 1535.04 | |
| C28 | 192.8 | 1554.94 | C54 | 195.4 | 1534.25 | |
| C29 | 192.9 | 1554.13 | C55 | 195.5 | 1533.47 | |
| C30 | 193 | 1553.33 | C56 | 195.6 | 1532.68 | |
| C31 | 193.1 | 1552.52 | C57 | 195.7 | 1531.9 | |
| C32 | 193.2 | 1551.72 | C58 | 195.8 | 1531.12 | |
| C33 | 193.3 | 1550.92 | C59 | 195.9 | 1530.33 | |
| C34 | 193.4 | 1550.12 | C60 | 196 | 1529.55 | |
| C35 | 193.5 | 1549.32 | C61 | 196.1 | 1528.77 | |
| C36 | 193.6 | 1548.51 | C62 | 196.2 | 1527.99 | |
ഷീറ്റ് 4:
| കോഡ് | കണക്ടർ ഇനം | അഭിപായപ്പെടുക |
| A | FC / APC | Single-mode 9 / 125 μm fiber pigtail, 0.9mm, 1m length |
| S | എസ്സി / ഐപിസി | |
| N | No Connector |
● Precautions
The fiber bending radius no less than 20 mm for avoiding fiber damaged.
Be sure the fiber coupling facet is clean before connecting it to opto-circuit.
The suitable ESD protection is required in storage, transportation and using.
അപ്ലിക്കേഷനുകൾ
High-Speed Data Communications
Antenna Remoting
Cellular and PCS Networks
Analog RF links transmission
സൈനിക ആശയവിനിമയം
Tracking, Telemetry, and Control
ടെലിമെട്രി സംവിധാനങ്ങൾ
സൈനിക, പ്രതിരോധ സംവിധാനങ്ങൾ
